Constant Speed Propeller - A02
Inspired by the Hartzell Prop used on the TBM 960.
➡️ About This Kit
Complete your PT6E or display it as a standalone project. Choose between cutaway and full propeller.
Everything about this prop resembles the real life propeller as closely as possible.
The variable pitch is made possible via a center shaft and fork mechanism, acting upon all five blades at once.
You can adjust the pitch by grabbing a blade and twisting it, or by pulling/pushing the center shaft.
The spring included in this Kit biases the blades toward the feathered position, just like in real life.
➡️ In the Box & Materials
List of Components:
- M2.5x10mm Machine Screw 66 PCS | A2 Stainless Steel
- M2.5 Stainless Steel Hex Nut 60 PCS | A2 Stainless Steel
- M2.7 Stainless Steel Flat Washer 12 PCS | A2 Stainless Steel
- 1x17.5x42mm Compression Spring 1PCS | 1.4310 Spring Steel
- 6003 Ball Bearing 5 PCS | Bearing Steel
➡️ Instructions & Shipping
Written PDF and Video Instructions.
Find both in the Propellers MakerWorld description. The videos are listed just under "Assembly" whilst the written instructions are further down under "Documentation".
Worldwide Shipping With DHL!
I ship from Germany to all over the world. Therefore shipping time depends on your location.
For shipping rates, click here or see them at checkout.
Regular price
€26,99 EUR
per
Completed Projects
Customer Reviews
Overall rating: 5.0 / 5 from 9 reviews.
This has been an awesome experience. The videos are perfect.
This by far is the most amazing 3D print I have accomplished. Also get the build kits from Linus.....must have. This will be quit the conversation piece. Thanks again Linus 3d. You da man.
Awesome experience printing this model! A++++
Really fun project!
Printed excellent.
After I finished Linus's PT6 turboprop engine, I naturally had to get the matching propeller too... Engine without a propeller doesn't drive anything ;-) Assembly was a "piece of cake" thanks to the instructions and the YouTube video, and I had a lot of fun. Hardly any post-processing was needed here either, everything fit perfectly Many thanks to Linus for the great model!

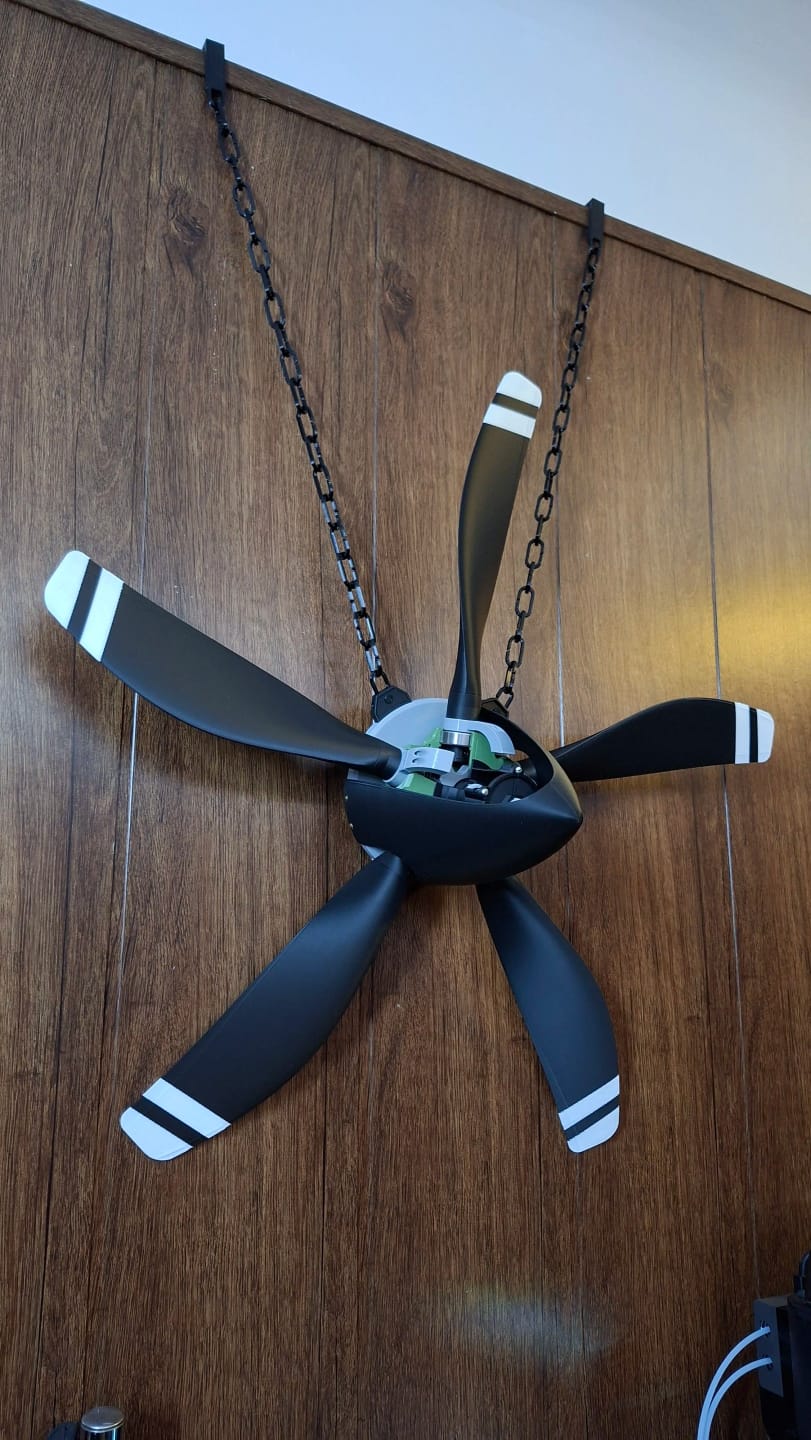

Perfect! At hour 10 my purge tower came off and messed up the the blades 😅 My fault, not the print profile's fault! I added the cutaway to see Linus's amazing internal work on the prop.
Absolut Top, sehr nett verpackt :)
